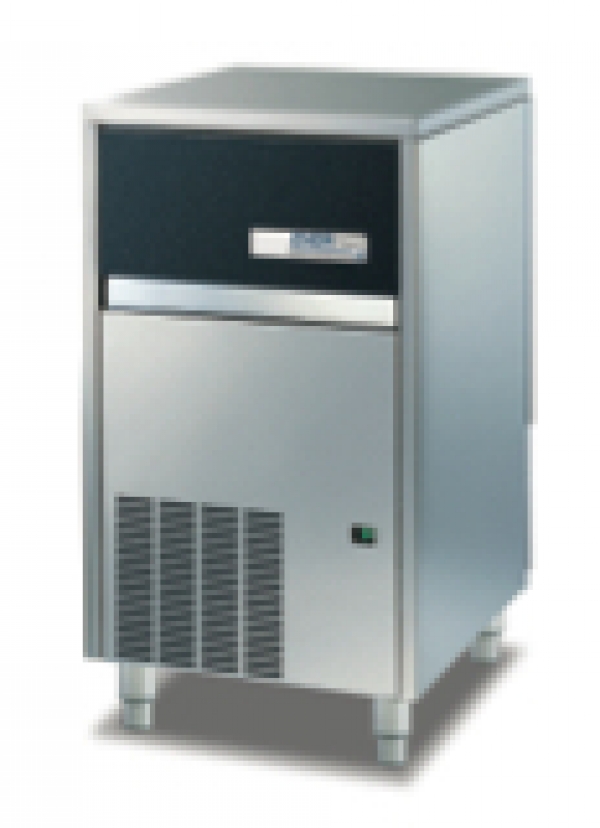

מכונה לייצור 46 ק"ג קוביות קרח ביממה - קירור אויר- CIM46
  • CIM46 :מק"ט
  • Evermed :יצרן
  • :תיאור המוצר

Structure : completely realized in stainless steel 18/10 AISI 304. Inside,
the structure it includes a bin, realized in atoxic plastic material, where is
stored the ice, when this bin is full, the machine stop itself to produce ice.
The bin is also insulated, to avoid the melting of the ice stored
• Feet : Nr 4, made in plastic material, adjustable in height for levelling
• Door : in the front part of the appliance is located the door plastic made
that closes the storage bin
• Water inlet and outlet : both located in the rear part of the appliance. The
water inlet is 3/4” size, while the water outlet is 24 mm ?. Both the pipes
for the water inlet and outlet are included in the machine, the one for the
inlet is about 110 cm long, while the outlet is about 50 cm
• Kind of ice : cubes of approx. 18 gr each
• Production (Kg/24h) : 46
• Bin capacity (Kg) : 25 (approx. 1470 ice cubes)
• Cooling unit : bottom mounted, with the condensing unit compounded by
Nr 1 hermetic compressor and Nr 1 finned condenser, air cooled through a
fan, in the version “A” or Nr 1 condenser, water cooled, in the version “W”.
Also, the motor compartment, incorporates the special evaporator with the
shape of the cubes that once formed, automatically release them into the
storage bin. All the mounted components are industrial grade to grant the
maximum reliability
• Water consumption (litres/Kg) : 4 (version A), 16 (version W)
• Refrigerant : R404a CFC-free
• Voltage (V/ph/Hz) : 220-230/1/50
• Plug : Schuko type
• Breakers : Nr 1 glass cartridge fuse with a rating of 10A, at protection of the appliance
• Noise level (dB(A)) : ? 50
• Dimensions (W x D x H cm) : 50 x 58 x 93
• Net weight (Kg) : 56
• Packed dimensions (W x D x H cm) : 55 x 63 x 97 (0,34 m³)
• Gross weight (Kg) : 64

מכונה לייצור 46 ק"ג קוביות קרח ביממה - קירור אויר- CIM46
