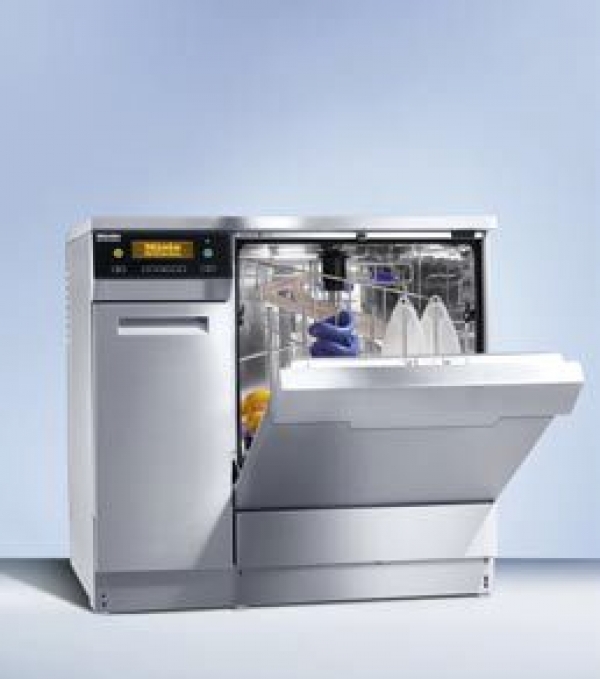

מדיח דלת אחת לכלי ניתוח ב 4 סלסלות - PG8535
  • G7823 :מק"ט
  • Miele Professional :יצרן
  • :תיאור המוצר


PG 8535
Short description
Washer-disinfector with integrated hot-air drying unit and drawer for two supply containers. For instrument reprocessing in hospitals and outpatient surgeries and for reprocessing laboratory glassware used in analytical experiments in industry, environmental and research laboratories, biology and pharmaceuticals. This machine features freely programmable Profitronic+ controls allowing the compilation of user-specific programmes.
Performance features
4 DIN mesh trays, 2 AN sets, 1-2 MIS sets, 48 GYN speculae
37 narrow necked flasks, 96 pipettes, 1600 test tubes
Construction
Freestanding/built-under without lid
90 cm wide
External finish
Stainless steel (AE)
Controls
Freely programmable PROFITRONIC+ controls with wide range of programming options, user-specific programmes, 4-line display with user navigation in local language, A0 controls
PROFITRONIC+ controls with 16 standard cleaning and disinfection programmes, 7 service programmes, 41 vacant programme slots
Automatic mobile unit recognition
Spray arm control monitors spray arm rotation, protects against loading errors and a build-up of foam in the hydraulic circuit
Programmes
DES-VAR-TD, DES-VAR-TD AN, VAR-TD-NR, SPECIAL 93/10, SCHUH-TD,
OPHTHAlMOLOGIE, OXIVARIO, OXIVARIO PLUS, CHEM-DESIN, LAB-STANDARD, LAB-UNIVERSAL,LAB-INTENSIV, LAB-KUNSTSTOFF, LAB-PIPETTEN, LAB-OEL, ORGANICA, ANORGANICA, ENDLOSPROGRAMM
Process documentation
Network interface for process documentation
Serial printer interface (RS232) for process documentation
Remote service
Remote service compatible
Cleaning technology
Hygienic freshwater system with water change after each cleaning phase
Thorough cleaning via 2 spray arms (3rd spray arm in the upper basket)
Optimally allocated spray nozzles and selectable spray arm rotation for the best possible cleaning result
Injector system for thorough cleaning of hollow instruments
Standard features
4-fold filter system with flat filter, coarse filter, glass shard filter and micro-fine filter
Flowmeter counter for control of water intake
2 spare sensors for temperature monitoring and control
Comprehensive safety features in accordance with EN 1SO 15883
Peak load cut-out
Wash cabinet
Wash cabinet made from high quality stainless steel
Circulation pumps
High performance circulation pump Qmax. 400l/min
Dispensing systems
2 integrated dispenser pumps for neutralising / cleaning agent
1 connection for dispenser module DOS G10 for liquid cleaning or neutralising agent
Drawer for 2 x 5 litre containers
Water softener
Profi monobloc water softener
Steam condenser
Efficient aerosal steam condenser
Drying
Integrated hot air drying unit
Fan: 0.3 kW, heater bank: 2.3 kW, total connected load: 2.6 kW, air throughput: 55 m3 /h, temperature adjustable in 1°C increments: 60-115°C ,time adjustable in 1 minute increments: 1-240 minutes, preliminary filter EU4, filtration rate >95%, filter life 100h, particle filter/Hepa filter H13, filtration rate >99.992% (DIN EN 1822), filter life: 500h
Plumbing
1 x cold water (CW)
1 x cold water for steam condenser
1 x Hot water (AW)
1 x AD water (AD)
Drainage
2 drain hoses
Electrical connection
3N AC 400V 50Hz
Fuse rating [A]: 3 x 16
Total connected load [kW]: 9.7
Heater rating [kW]: 9.0
Accessories
Stainless steel lid
Dispenser modules for liquid media
Dimensions / weight
External dimensions H/W/D [mm]: 820/900/700
Net weight [kg]: 114
Test marks
MDD CE 0366
VDE
VDE-EMV
IP 20

מדיח דלת אחת לכלי ניתוח ב 4 סלסלות - PG8535
